SE-WDKS Blower Seal

Product Overview

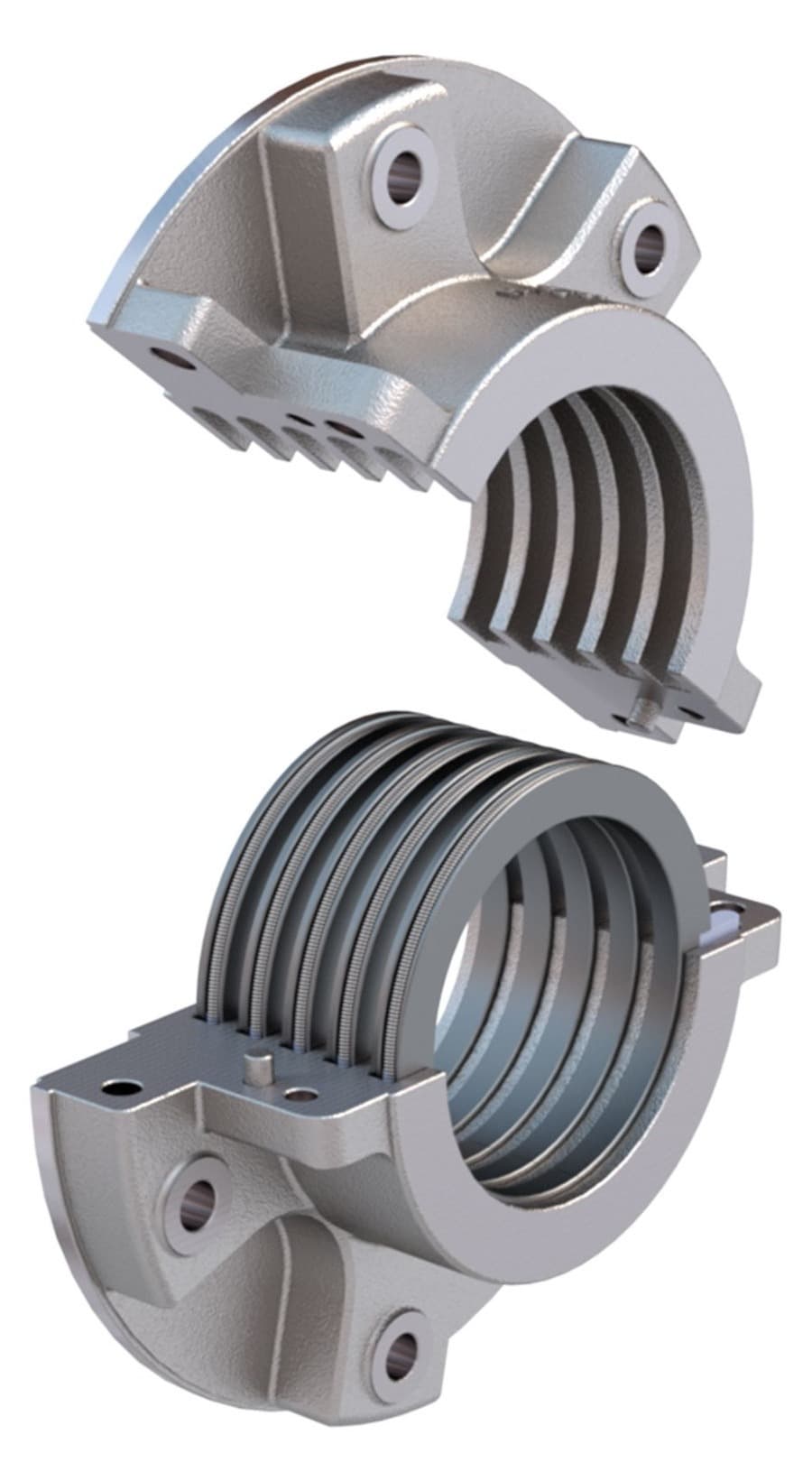

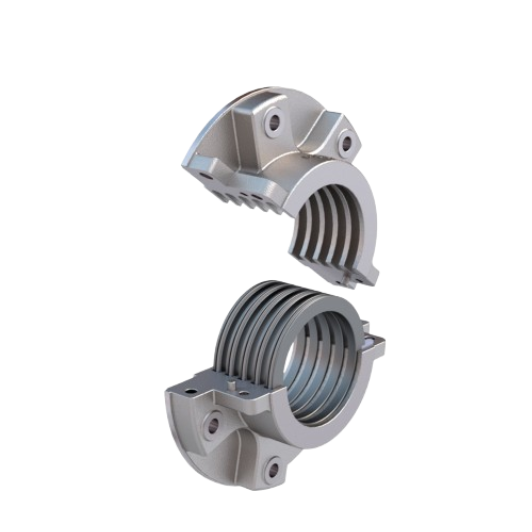

SE-WDKS Mechanical Seal for Industrial blowers and fans. single end, multi part seal rings, radially cut, independent rotary direction, split housing design, very small operation gap results in to low leakage, dry running, self-adjusting seal rings which easily bear radial shaft movements and compensate axial shaft movements. No sealing components mounted on shaft and hence no additional shaft vibration. Seal ring are running contact free-sliding faces and for which machine does not consumes additional power. This mechanical seal is also known as KSB Part No. 433 mechanical seal. Many other pump manufacturers such as WILO are also using the same type of mechanical seal as their standard sealing solutions.

Technical Specifications

• Model: SE-E1
• Design: Unbalanced
• Pressure: Vacuum to 0.15 MPa or Less
• Temperature: –20°C to 500°C
• Linear Speed:  150 m/s or less
• Size Range: ID 45 mm to 180 mm
