SE-DSSB Dual Balanced Seal
Mechanical Seals · Agitator Seal

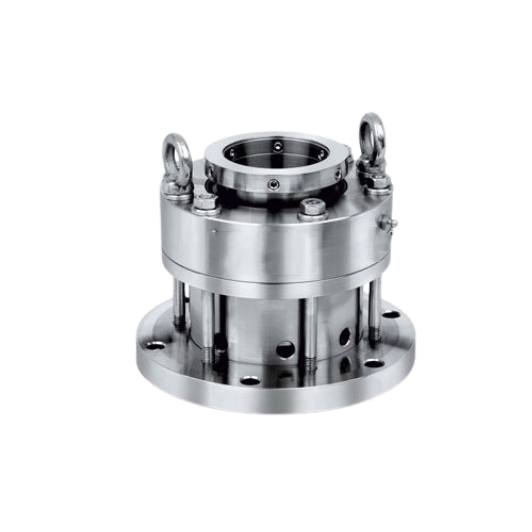

SE-DSSB Dual Balanced Seal
Product Overview
SE-DSSB Dual Balanced Mechanical Seal for Vertical Type Agitation Equipment. Dual Balanced is the double end structure. The component is dual balanced with auto reversal for maximum safety. seal with cooling jacket as a standard feature. Pressurised sealant. Primary ring is of heavy duty design and stationary face is hydraulically balanced. Split clamping avoids shaft damages.
Technical Specifications
- Model: SE-DSSB Balanced Seal
- Design: Balanced
- Pressure: Full vacuum to 4.0 MPa
- Temperature: –40°C to 200°C
- Linear Speed: 2 m/s or less
- Size Range: ID 50 mm to 150 mm
Materials
Rotary Ring: SiC / Carbon Stationary Ring: TC / SiC Elastomers: Aflas, Viton, EPDM, PTFE, FFKM Springs: SS304, SS316, HC-276 Metal Components: SS304, SS316, SS316L
Applications
Ideal for use top driven vertical type high pressure Agitation equipment and Autoclaves.
Standards
Complies with API 610, EN 12756, ISO 3069 and DIN 24960.
Media Compatibility
water, oil, weak acid. weak alkali, and other normal mediums
Customization
Material options available to meet specific operating requirements.
